After the news earlier this week that Docker will be introducing charges to the Docker Subscription Service Agreement, as detailed in the Tweet below:
We're updating and extending our product subscriptions! New subscription tiers include Personal, Pro, Team, and Business. Details here: https://t.co/pyDetDKGjC #Docker #Subscriptions pic.twitter.com/Or8l6YoIUO
— Docker: Build 39X Faster (@Docker) August 31, 2021
I started to think about looking at alternatives, while I use Docker Desktop I did not use it enough to warrant looking at one of the new subscriptions. There are two main reasons to run Docker Desktop
- Running containers on an operating system where containers can’t run natively
- Its built-in Kubernetes clustering is very convenient
Below are three tools which each try and solve one of those two points.
Lima
Lima had been on my list of things of things to look at for about a month, as I had seen it mentioned in a few places, the projects GitHub page describes it as follows:
Lima launches Linux virtual machines with automatic file sharing, port forwarding, and containerd. It can be considered as a some sort of unofficial “macOS subsystem for Linux”, or “containerd for Mac”.
As you can see this replaces Docker with containerd
, it also replaces the docker command with nerdctl
which promises to be a Docker-compatible CLI for containerd.
Installing Lima
Lima is available on Homebrew so installing it is really easy, just run the two commands below to install it and then start the Virtual Machine …
brew install lima
limactl start
… when starting the Virtual Machine I opted to keep the default settings which uses Ubuntu as its base, the output of the limactl start command is below …
? Creating an instance "default" Proceed with the default configuration
INFO[0007] Downloading "https://github.com/containerd/nerdctl/releases/download/v0.11.1/nerdctl-full-0.11.1-linux-amd64.tar.gz" (sha256:ce7a6e119b03c3fb8ded3d46d929962fd17417bea1d5bbc07e0fce49494d8a09)
172.67 MiB / 172.67 MiB [----------------------------------] 100.00% 62.32 MiB/s
INFO[0011] Downloaded "nerdctl-full-0.11.1-linux-amd64.tar.gz"
INFO[0012] Attempting to download the image from "~/Downloads/hirsute-server-cloudimg-amd64.img"
INFO[0012] Attempting to download the image from "https://cloud-images.ubuntu.com/hirsute/current/hirsute-server-cloudimg-amd64.img"
554.25 MiB / 554.25 MiB [----------------------------------] 100.00% 37.21 MiB/s
INFO[0028] Downloaded image from "https://cloud-images.ubuntu.com/hirsute/current/hirsute-server-cloudimg-amd64.img"
INFO[0030] [hostagent] Starting QEMU (hint: to watch the boot progress, see "/Users/russ.mckendrick/.lima/default/serial.log")
INFO[0030] SSH Local Port: 60022
INFO[0030] [hostagent] Waiting for the essential requirement 1 of 4: "ssh"
INFO[0040] [hostagent] Waiting for the essential requirement 1 of 4: "ssh"
INFO[0059] [hostagent] The essential requirement 1 of 4 is satisfied
INFO[0059] [hostagent] Waiting for the essential requirement 2 of 4: "sshfs binary to be installed"
INFO[0068] [hostagent] The essential requirement 2 of 4 is satisfied
INFO[0068] [hostagent] Waiting for the essential requirement 3 of 4: "/etc/fuse.conf to contain \"user_allow_other\""
INFO[0083] [hostagent] The essential requirement 3 of 4 is satisfied
INFO[0083] [hostagent] Waiting for the essential requirement 4 of 4: "the guest agent to be running"
INFO[0083] [hostagent] The essential requirement 4 of 4 is satisfied
INFO[0083] [hostagent] Mounting "/Users/russ.mckendrick"
INFO[0083] [hostagent] Mounting "/tmp/lima"
INFO[0083] [hostagent] Waiting for the optional requirement 1 of 2: "systemd must be available"
INFO[0083] [hostagent] Forwarding "/run/user/501/lima-guestagent.sock" (guest) to "/Users/russ.mckendrick/.lima/default/ga.sock" (host)
INFO[0083] [hostagent] The optional requirement 1 of 2 is satisfied
INFO[0083] [hostagent] Waiting for the optional requirement 2 of 2: "containerd binaries to be installed"
INFO[0083] [hostagent] Not forwarding TCP 127.0.0.53:53
INFO[0083] [hostagent] Not forwarding TCP 0.0.0.0:22
INFO[0083] [hostagent] Not forwarding TCP [::]:22
INFO[0084] [hostagent] The optional requirement 2 of 2 is satisfied
INFO[0084] READY. Run `lima` to open the shell.
From here you can prefix any command you want to be run within the Linux Virtual machine with lima so running the following …
lima uname -a
… returns the following output …
Linux lima-default 5.11.0-31-generic #33-Ubuntu SMP Wed Aug 11 13:19:04 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux
Lets now take a look at running a container.
Running a container
Any good Docker introduction will always have you running the hello-world container, so that seems like a good place to start. To run the container the following command …
lima nerdctl container run hello-world
… this gives the following output …
docker.io/library/hello-world:latest: resolved |++++++++++++++++++++++++++++++++++++++|
index-sha256:7d91b69e04a9029b99f3585aaaccae2baa80bcf318f4a5d2165a9898cd2dc0a1: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:1b26826f602946860c279fce658f31050cff2c596583af237d971f4629b57792: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:d1165f2212346b2bab48cb01c1e39ee8ad1be46b87873d9ca7a4e434980a7726: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:b8dfde127a2919ff59ad3fd4a0776de178a555a76fff77a506e128aea3ed41e3: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 1.9 s total: 4.5 Ki (2.3 KiB/s)
Hello from Docker!
This message shows that your installation appears to be working correctly.
To generate this message, Docker took the following steps:
1. The Docker client contacted the Docker daemon.
2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
(amd64)
3. The Docker daemon created a new container from that image which runs the
executable that produces the output you are currently reading.
4. The Docker daemon streamed that output to the Docker client, which sent it
to your terminal.
To try something more ambitious, you can run an Ubuntu container with:
$ docker run -it ubuntu bash
Share images, automate workflows, and more with a free Docker ID:
https://hub.docker.com/
For more examples and ideas, visit:
https://docs.docker.com/get-started/
… success 🥳, we have pulled and download our first image using nerdctl and containerd.
Building and working with containers
For this I took one of the examples from Mastering Docker (Fourth Edition)
which installs NGINX and deploys a simple static HTML file, the Dockerfile for this is below, however if you want to follow along you will need all the files which can be found at russmckendrick/lima-dockerfile-example
:
FROM alpine:latest
LABEL maintainer="Russ McKendrick <[email protected]>"
LABEL description="This example Dockerfile installs NGINX."
RUN apk add --update nginx && \
rm -rf /var/cache/apk/* && \
mkdir -p /tmp/nginx/
COPY files/nginx.conf /etc/nginx/nginx.conf
COPY files/default.conf /etc/nginx/conf.d/default.conf
ADD files/html.tar.gz /usr/share/nginx/
EXPOSE 80/tcp
ENTRYPOINT ["nginx"]
CMD ["-g", "daemon off;"]
To build all you need to is change your current directory to the folder containing the Dockerfile and run the following command:
lima nerdctl image build --tag local:lima-example .
You should see something which looks like the following output:
[+] Building 3.8s (10/10) FINISHED
=> [internal] load build definition from Dockerfile 0.1s
=> => transferring dockerfile: 474B 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load metadata for docker.io/library/alpine:latest 1.7s
=> [1/5] FROM docker.io/library/alpine:latest@sha256:e1c082e3d3c45cccac829840a25941e679c25d4 0.4s
=> => resolve docker.io/library/alpine:latest@sha256:e1c082e3d3c45cccac829840a25941e679c25d4 0.0s
=> => sha256:a0d0a0d46f8b52473982a3c466318f479767577551a53ffc9074c9fa7035982 2.81MB / 2.81MB 0.2s
=> => extracting sha256:a0d0a0d46f8b52473982a3c466318f479767577551a53ffc9074c9fa7035982e 0.1s
=> [internal] load build context 0.0s
=> => transferring context: 59.58kB 0.0s
=> [2/5] RUN apk add --update nginx && rm -rf /var/cache/apk/* && mkdir -p / 1.1s
=> [3/5] COPY files/nginx.conf /etc/nginx/nginx.conf 0.0s
=> [4/5] COPY files/default.conf /etc/nginx/conf.d/default.conf 0.0s
=> [5/5] ADD files/html.tar.gz /usr/share/nginx/ 0.1s
=> exporting to oci image format 0.4s
=> => exporting layers 0.2s
=> => exporting manifest sha256:1b8d360cd195595bca09b64ad110ea31ca793d33a220fdd49b78a58ca6c2 0.0s
=> => exporting config sha256:ee2c8c52cc0fc3892d8b7538306a5e630d47e82cb07df57fb5b71b44c1b241 0.0s
=> => sending tarball 0.1s
unpacking docker.io/library/local:lima-example (sha256:1b8d360cd195595bca09b64ad110ea31ca793d33a220fdd49b78a58ca6c2f968)...done
unpacking fuse-overlayfs@sha256:1b8d360cd195595bca09b64ad110ea31ca793d33a220fdd49b78a58ca6c2f968 (sha256:1b8d360cd195595bca09b64ad110ea31ca793d33a220fdd49b78a58ca6c2f968)...done
Now that we have our custom NGINX image, let’s launch it by running:
lima nerdctl container run -d --name lima-example -p 8080:80 local:lima-example

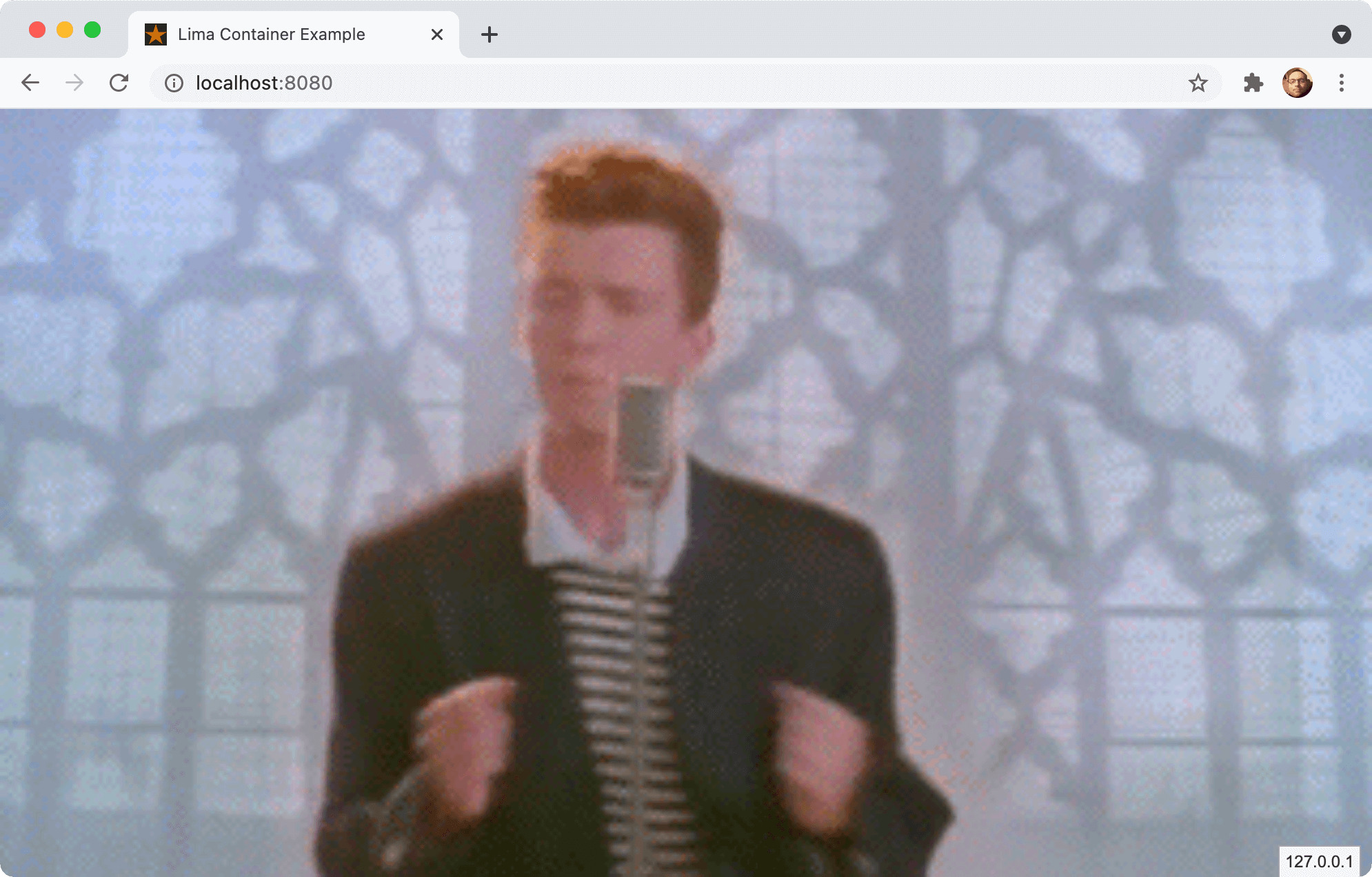

Finally, going to http://localhost:8080/ should show you the following page:
Now you might be thinking to yourself “Big deal, thats what I would have expected to have seen 🤷” and that is really a testament to what the developers have done, to get you into the the position where you can simply change folders on your local machine run a command and have your local folder mounted as the context within the Linux Virtual Machine means that they had to add some very complicated “stuff” in the background to enable both the mounting and also exposing the container port so it is bound to your local machine and not the Linux Virtual Machine itself.
Also, the syntax for other common docker commands it pretty much the same, as you can see below - we are listing all containers:
$ lima nerdctl container ls -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
0cd4757d4af0 docker.io/library/local:lima-example "nginx -g daemon off;" 8 minutes ago Up 0.0.0.0:8080->80/tcp lima-example
5181bb58d69a docker.io/library/hello-world:latest "/hello" 10 seconds ago Exited (0) 10 seconds ago
Here we are listing the images:
$ lima nerdctl image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
hello-world latest 7d91b69e04a9 About a minute ago 20.0 KiB
local lima-example 47ad7ea849a6 10 minutes ago 7.8 MiB
Finally, stop and remove the NGINX container:
lima nerdctl container stop lima-example
lima nerdctl container rm lima-example
There is one more thing though …
Tidying up
As the limactl start command basically launched a full Ubuntu Linux Virtual machine on your host machine you probably don’t want that running all of the time so the following commands will stop and also you can remove the VM:
Warning
Please Note running the “limactl remove” command will delete the virtual machine loosing any customization you have done along with any data you have explicitly stored on the virtual machine itself
limactl stop
limactl remove default
Rancher Desktop
While watching “AzUpdate S03E05” @TheAprilEdwards mentioned Rancher Desktop , you can find the full episode below:
Up until that point I hadn’t heard of Rancher Desktop, so lets take a quick look at it.
Installing Rancher Desktop
Rancher Desktop is very new, its first first release was May and it is still a very early alpha, because of this there is no Homebrew installer for it (just yet) so to install you will have to goto the projects GitHub release page and down the dmg file, once download mount it and then drag the application to your Applications folder.
Open the application and then give it about 5 minutes.
Tip
There is are a few issues in Rancher Desktop 0.4.1 which stopped me from using the latest version, I ended up having to run the 0.3.0.

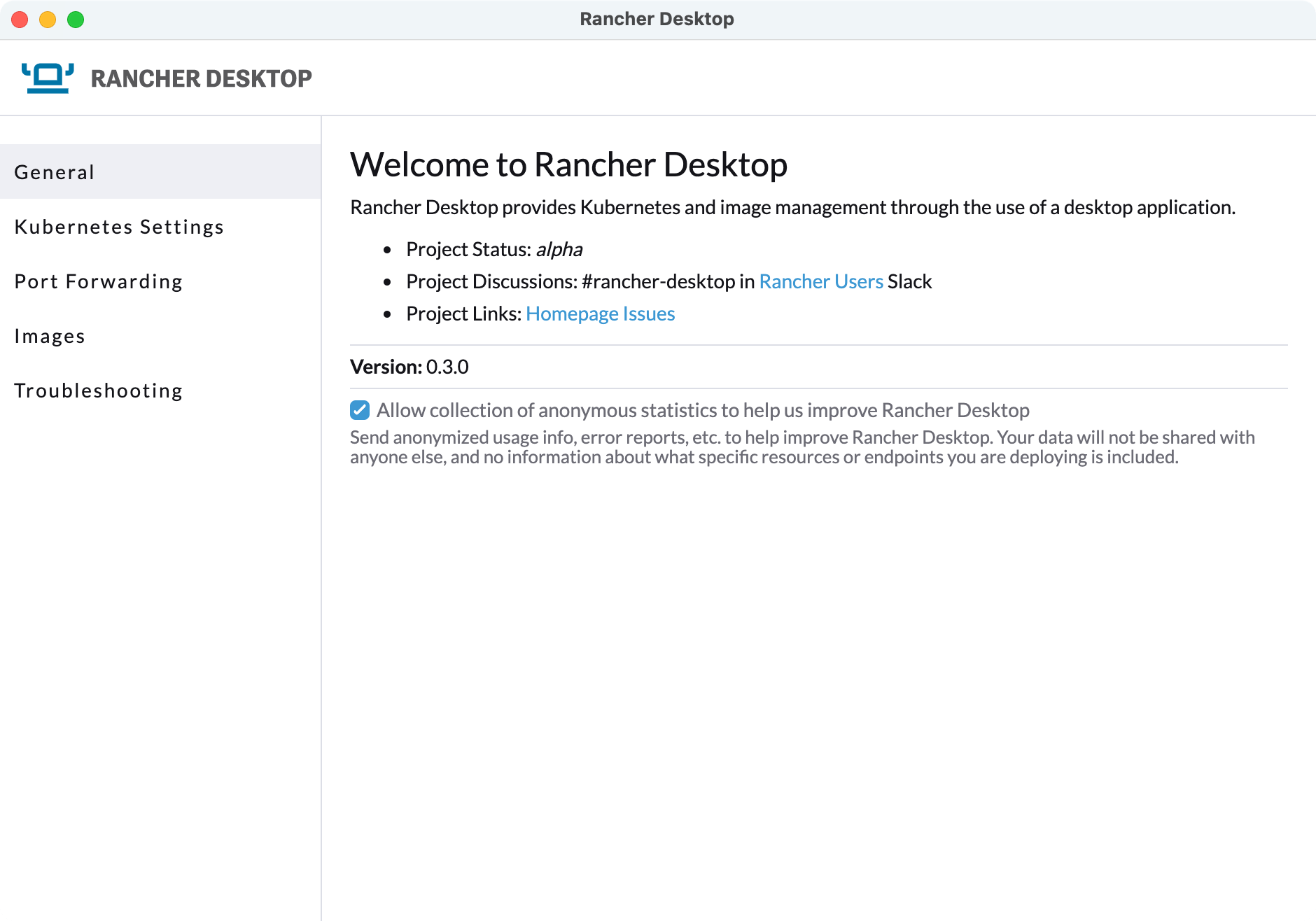

Once launched you should see something similar to the following screen:

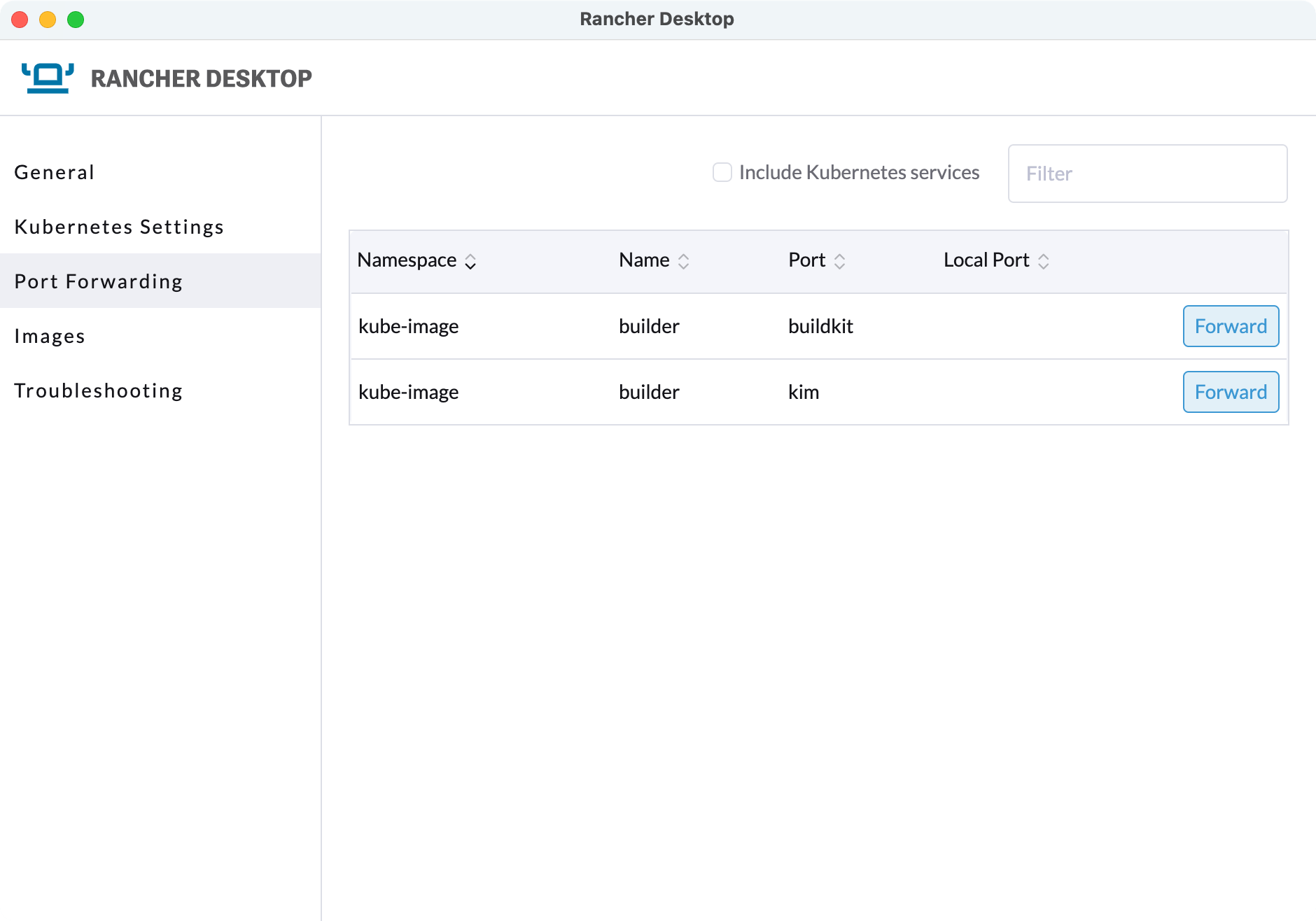

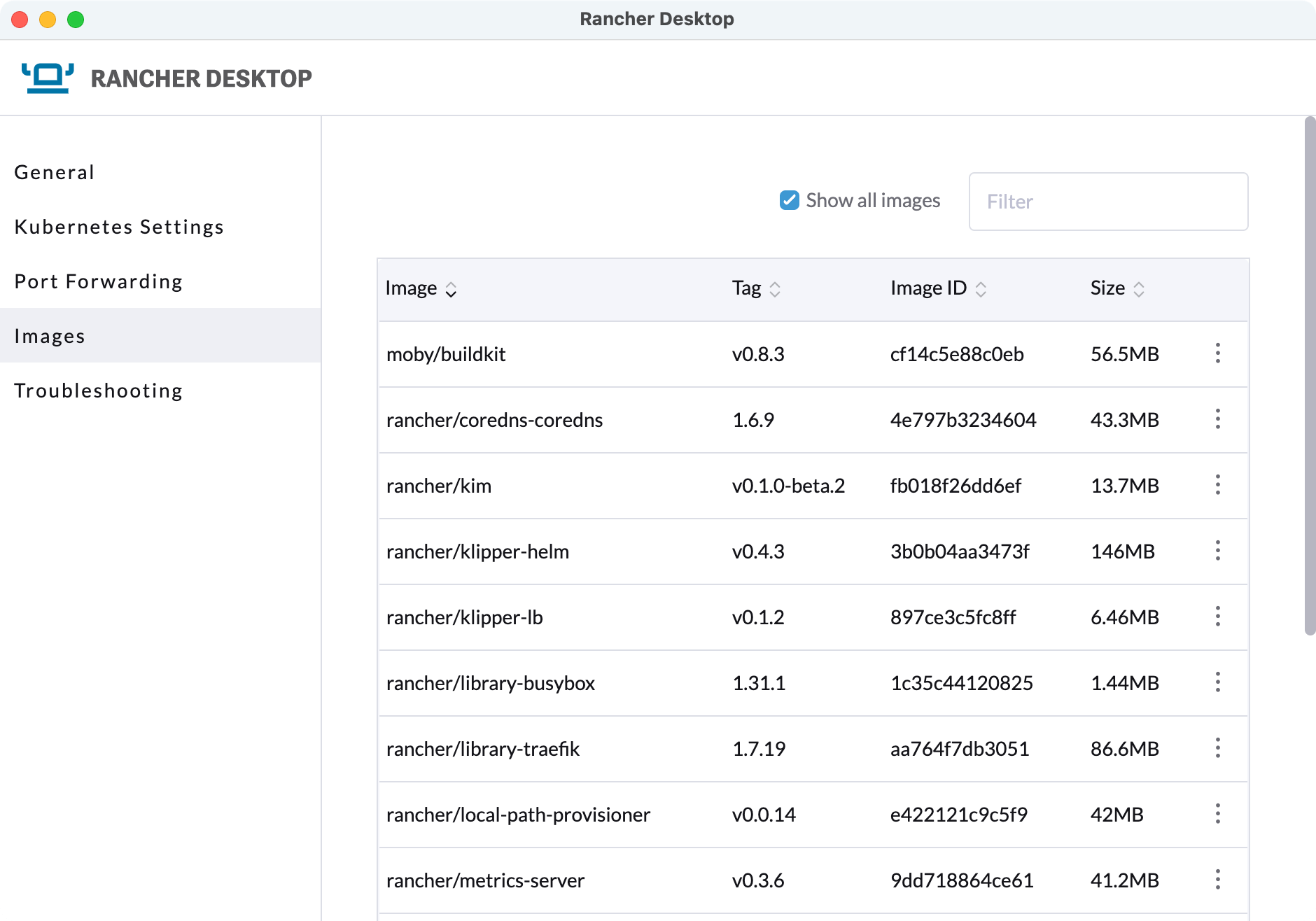

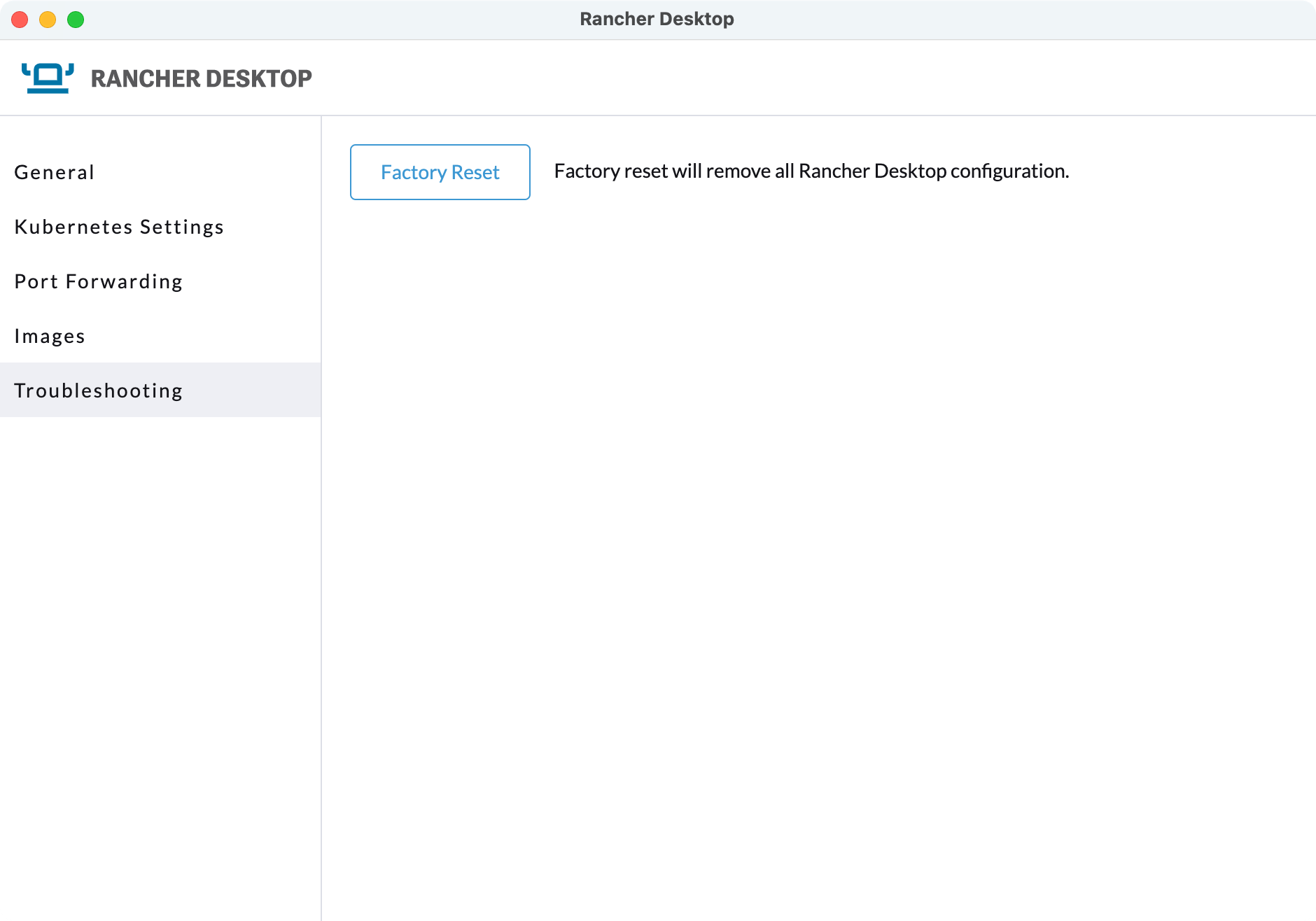

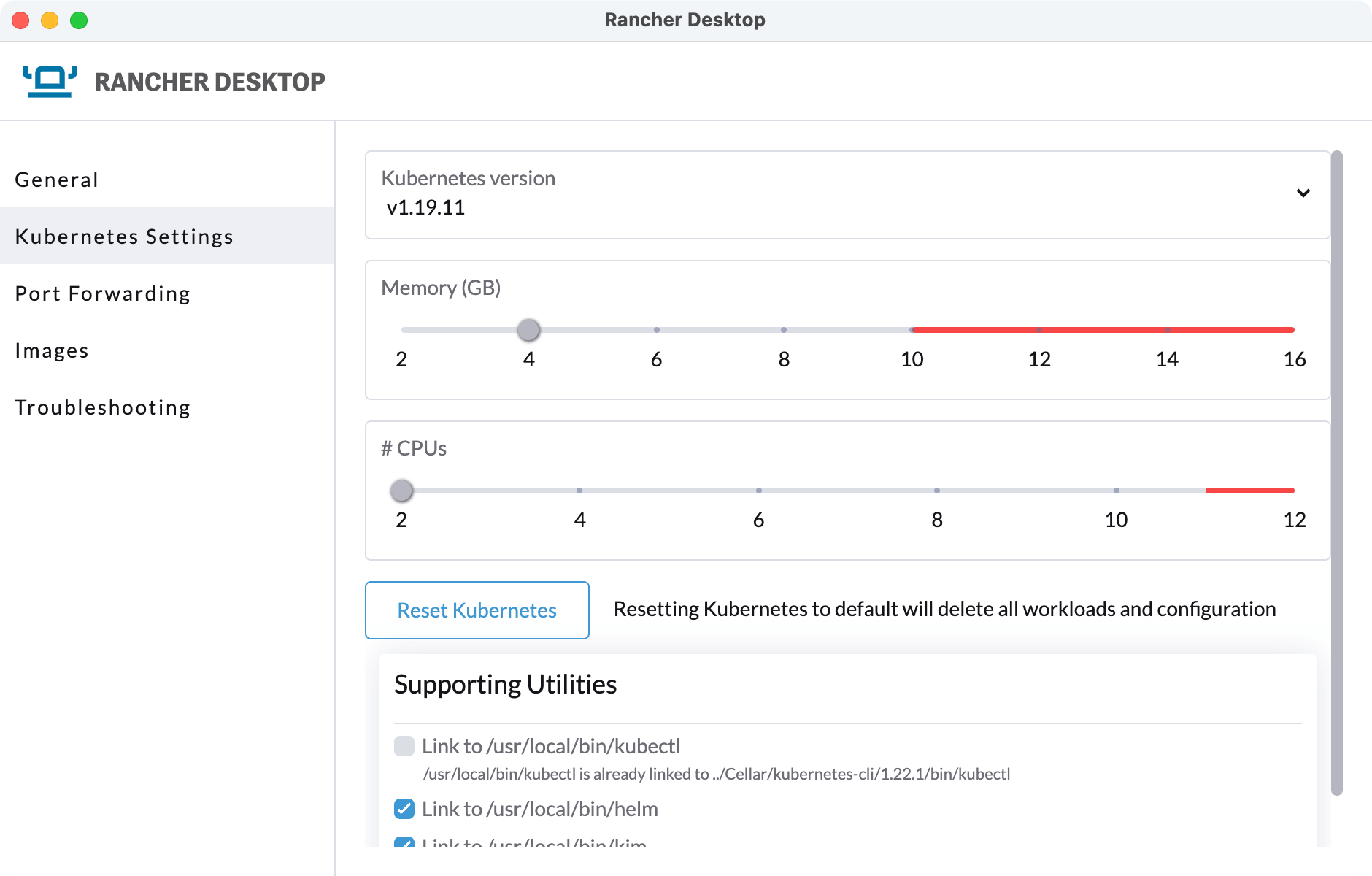

The other options look like the following (click to zoom):
Using Rancher Desktop
Once up and running, Rancher Desktop is no real different from any Kubernetes installation, drop to the command line and use kubectl, for example running:
kubectl get nodes
Will show something like:
NAME STATUS ROLES AGE VERSION
default Ready builder,master 8m57s v1.19.11+k3s1
helm repo add opsmx https://helmcharts.opsmx.com/
helm install my-hello-kubernetes opsmx/hello-kubernetes --version 1.0.3 --set service.type=ClusterIP
I could go on, but Rancher Desktop is very alpha and I ended up having to mess about a lot to get things running.
Info
Make sure you quit the desktop app from the menu bar and don’t just close the window otherwise Rancher Desktop will remain running in the background.
Minikube
Minikube has been around a longtime and while it does not have a Desktop front-end it remains more than capable to run your Kubernetes workload locally.
Installing Minikube
brew install minikube kubectl helm
minikube start
You should then see some like the following output:
😄 minikube v1.23.0 on Darwin 11.5.2
✨ Automatically selected the hyperkit driver. Other choices: virtualbox, ssh
💾 Downloading driver docker-machine-driver-hyperkit:
> docker-machine-driver-hyper...: 65 B / 65 B [----------] 100.00% ? p/s 0s
> docker-machine-driver-hyper...: 10.52 MiB / 10.52 MiB 100.00% ? p/s 100m
🔑 The 'hyperkit' driver requires elevated permissions. The following commands will be executed:
$ sudo chown root:wheel /Users/russ.mckendrick/.minikube/bin/docker-machine-driver-hyperkit
$ sudo chmod u+s /Users/russ.mckendrick/.minikube/bin/docker-machine-driver-hyperkit
💿 Downloading VM boot image ...
> minikube-v1.23.0.iso.sha256: 65 B / 65 B [-------------] 100.00% ? p/s 0s
> minikube-v1.23.0.iso: 229.15 MiB / 229.15 MiB 100.00% 68.60 MiB p/s 3.5s
👍 Starting control plane node minikube in cluster minikube
💾 Downloading Kubernetes v1.22.1 preload ...
> preloaded-images-k8s-v12-v1...: 515.04 MiB / 515.04 MiB 100.00% 61.30 Mi
🔥 Creating hyperkit VM (CPUs=2, Memory=4000MB, Disk=20000MB) ...
🐳 Preparing Kubernetes v1.22.1 on Docker 20.10.8 ...
▪ Generating certificates and keys ...
▪ Booting up control plane ...
▪ Configuring RBAC rules ...
🔎 Verifying Kubernetes components...
▪ Using image gcr.io/k8s-minikube/storage-provisioner:v5
🌟 Enabled addons: storage-provisioner, default-storageclass
🏄 Done! kubectl is now configured to use "minikube" cluster and "default" namespace by default
Using Minikube
Once Minikube is up and running you should be able to interact with it using kubectl and helm for example running:
kubectl get nodes
Gives the following:
NAME STATUS ROLES AGE VERSION
minikube Ready control-plane,master 17m v1.22.1
You can also install a Helm chart using:
helm repo add opsmx https://helmcharts.opsmx.com/
helm install my-hello-kubernetes opsmx/hello-kubernetes --version 1.0.3 --set service.type=ClusterIP
Once you have the application up and running you can run the following command to open a tunnel to your cluster:
minikube tunnel
The minikube tunnel command needs to run in the foreground so open a new terminal window and run the following command:
kubectl get service hello-kubernetes-my-hello-kubernetes
For me this returned the following:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
hello-kubernetes-my-hello-kubernetes ClusterIP 10.105.108.88 <none> 80/TCP 15m

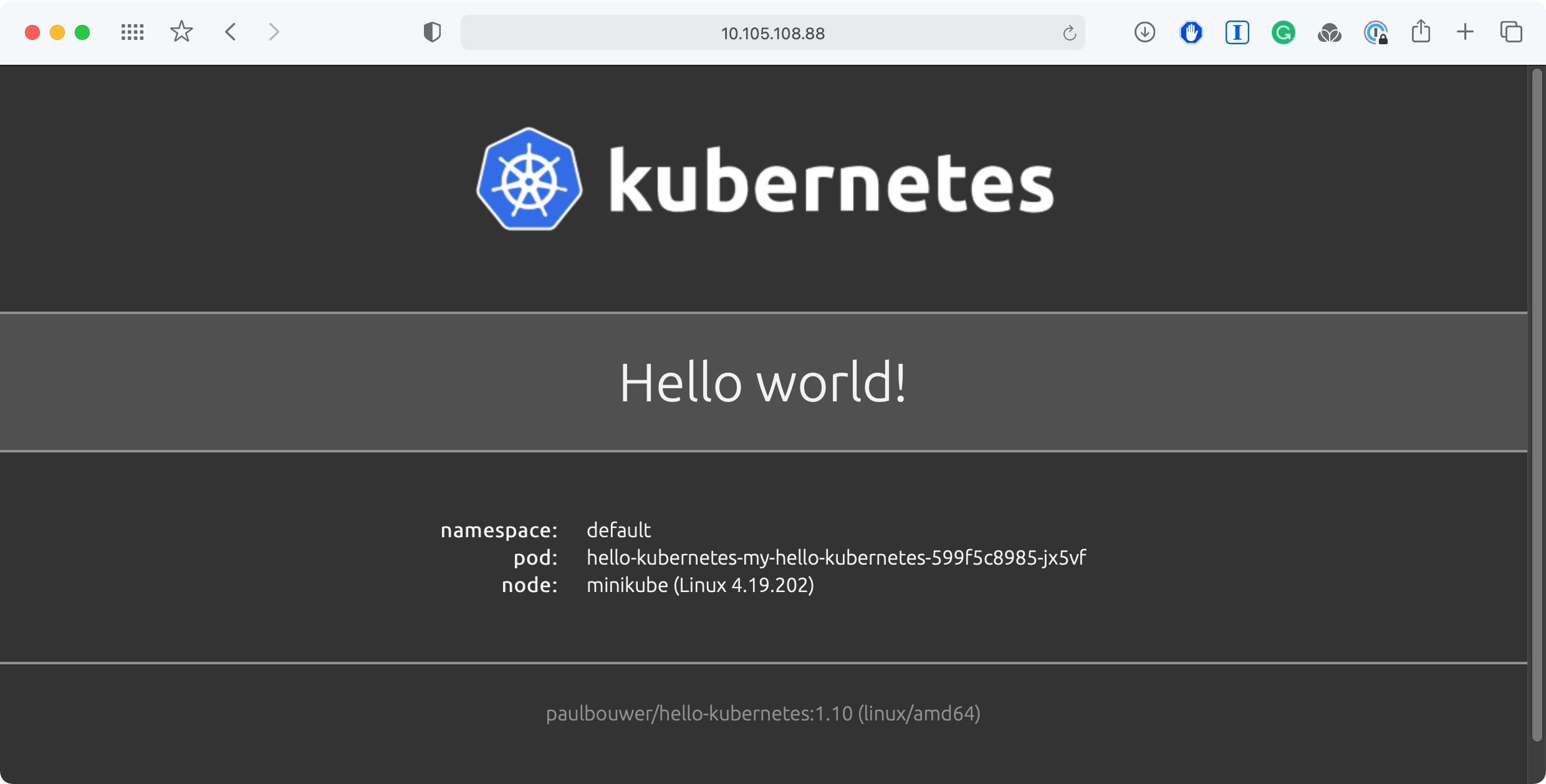

Make a copy of the CLUSTER-IP and enter into your browser, e.g. http://10.105.108.88 and you should be presented with the following:
Tidying up
Like Lima, Minikube will continue to run in the background until it is stopped, which you can do by running:
minikube stop
✋ Stopping node "minikube" ...
🛑 1 nodes stopped.
You can also run the following command to delete the virtual machine running Minikube so that you start with a clean image when you next run minikube start
Warning
Running the command below will immediately delete you Minikube VM, there are no prompts so please make sure that really want to delete the VM before running !!!
minikube delete
🔥 Deleting "minikube" in hyperkit ...
💀 Removed all traces of the "minikube" cluster.
Summary
Two of the three tools covered here are very new, Lima and Rancher Desktop have only been publicly available since May 2021. Rancher Desktop is also actually in the middle of moving to use Lima as its backend in version v0.4 (which is also the version I had problems with) so should considered extremely alpha. However, it is well worth keeping a close eye on as K3s, the backend tool used to the Kubernetes cluster, is very stable so the Desktop wrapper for this should quickly catchup with any luck.
Lima on the other hand is a great replacement for Docker Desktop - it has quite close feature parity and moves to using 100% open source components.
Finally, Minikube has always been a great alternative to running a single node CNCF compliant Kubernetes cluster rather than the Kubernetes clustering built into Docker Desktop and it remains so.
It is going to be an interesting few months ahead as both Lima and Rancher Desktop ramp up their development and interest in the projects grow following Dockers announcement.
